Description
Redline High Pressure Heavy Wall Tubular Level Gauge Gage Glass

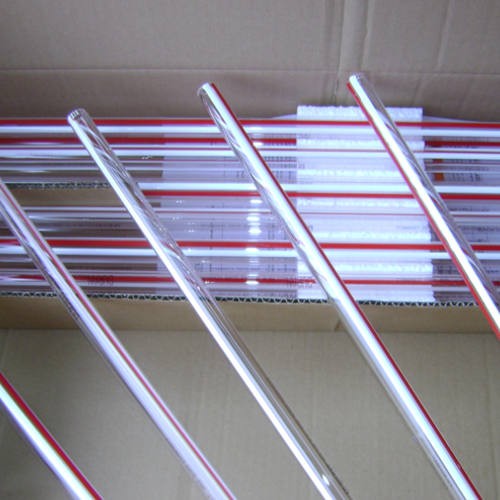

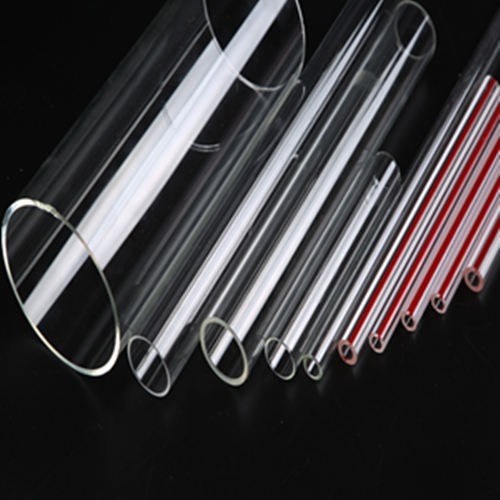

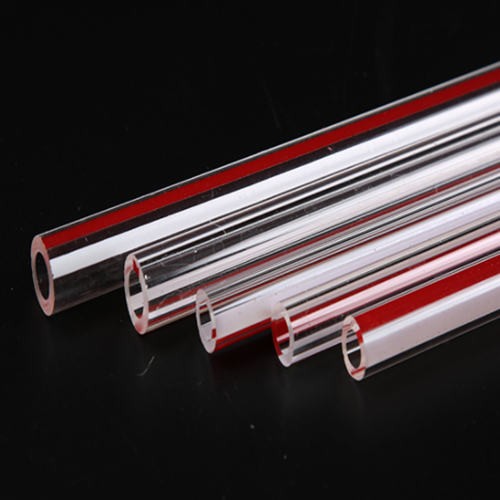

Borosilicate tubular gage glass is designed with a red line between two white lines. The color contrast makes it easier to read
the liquid level. This is achieved by the application of specially developed paints that are bonded to the glass without etching.
Material: Standard borosilicate glass 3.3 (we also can provide the quartz )
Diameters range from 1/2" OD to 1" OD
General Application: Tanks, reservoirs, low pressure boilers.
Ends Finish:may be cut, ground, or fire polished depending on application.
Pressure ratings range:from 90 PSI to 600 PSI depending on end finish, diameter, and length required.
Common size
O.D.1/2" (+0, -1/32) Wall Thickness 5/64" ±1/64" Length 8-72"
O.D.5/8" (+0, -1/32) Wall Thickness 3/32" ±1/64" Length 8-72"
O.D.3/4" (+0, -1/32) Wall Thickness 7/64" ±1/64" Length 8-72"
O.D.1.0" (+0, -1/32) Wall Thickness 1/8" ±1/64" Length 8-72"
Redline Heavy Wall Tubular Gage Glass
O.D.3/4"(+1/64 , - 3/64") Wall Thickness 7/32" (+ 1/16", -0) Length 12-48"
