Description

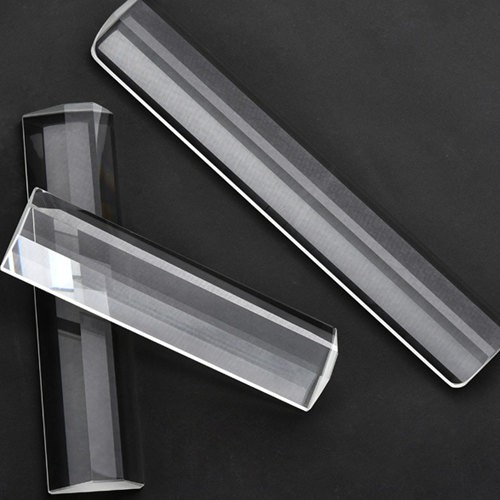

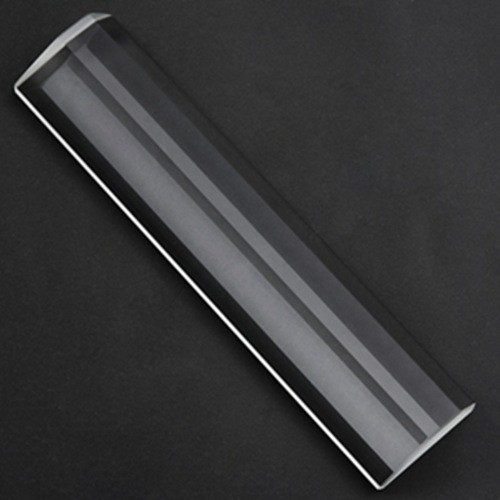

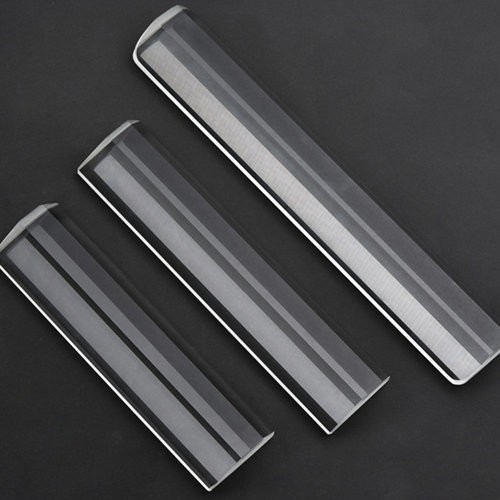

Transparent Flat Prism Level Gauge Glass
Thermal shock temperature: >200 ℃
Softening temperature: ＞900 ℃
Expansion coefficient: 42～46×10-7/K
Acid resistance: <0.5mg/c㎡
Triangular prism glass is also called two-color water level gauge glass. It is generally equipped with red and green glass strips.
The main properties are regular triangular prisms and partial triangular prisms.
The main specifications and models of the polarizing prism glass: 120*50*22mm, 165*50*22mm, 186*50*22mm,
190*50*22mm, 216*50*22mm, etc.
Introduction to the performance of prism glass:
Flexural strength: 200～210 MPaThermal shock temperature: >200 ℃
Softening temperature: ＞900 ℃
Expansion coefficient: 42～46×10-7/K
Product usage conditions: ≤500 ℃, ≤3Mpa.
Product chemical stability:
Water resistance: <0.5mg/c㎡Acid resistance: <0.5mg/c㎡
Alkali resistance: <80mg/c㎡
This product is made by special production and processing. It has high strength, but it can't withstand violent beating.
Therefore, it is not suitable for heavy hammering when disassembling and assembling.The selected washer should be
suitable and flat. When the clamp is screwed, the force on the glass plate should be even. The screws should be
clamped in a cross pattern of 1, 3, 5...2, 4, 6... several times.It is not advisable to open the two-end valve immediately
after the water level gauge is installed. It should be preheated for 20-30 minutes. After the glass has a certain temperature,
water or other media can be entered. The steam will be turned on later, and the screws must be tightened after a period of use.
