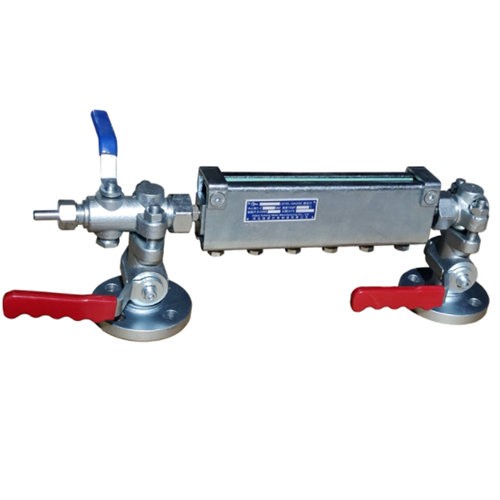

Reflex Boiler Plate Sight Glass Level Indicator

Technique Parameters

Glass type

borosilicate glass/aluminosilicate glass/quartz glass tube

Gasket material

Graphite gasket

Pressure for steel ball shut off automatically

≥0.2Mpa

Steam pressure

≤0.6Mpa

Steam sheath joint

G1/2″male thread

Measure range

300~3000mm

Working temperature

-20~450ºC

Working pressure

0.6MPa, 2.5Mpa, 4.0MPa, 6.3MPa, 16MPa,

Meter material

carbon steel, SS304 or SS316

Transmit color

nature color, or bi-color type (green for liquid, red for air) Ordinary globe valve or 1/4 opens or close valve.

Lamp lighting

fluorescent lamp power supply AC36V

Glass  sizes

140mm, 165mm, 190mm, 218mm, 260mm, 280mm, 290mm, 320mm, 340mm

Note

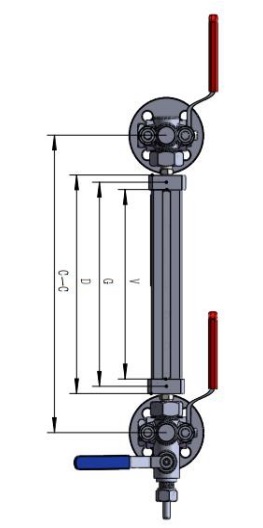

Connection center to center distance 10mm adjustable
