Description

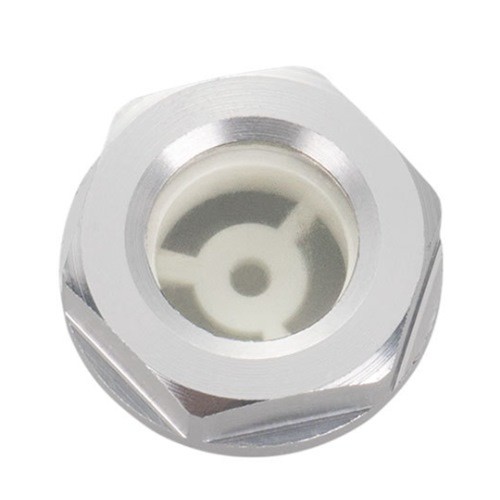

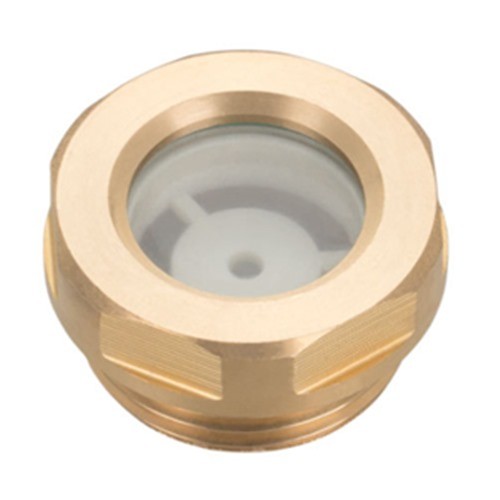

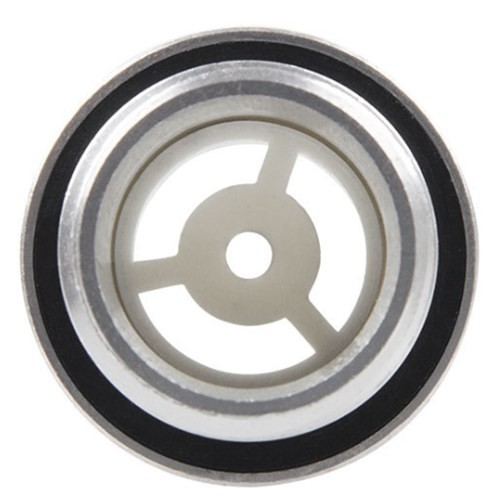

Brass Aluminum Oil Level Sight Glass Window
Sight glass, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Brass ,aluminum
O-Ring: Viton and NBR
Glass: Tempered Glass
Reflector Plate :PSF
Size：
M10X1,M12X1.5,M14X1.5,M16X1.5,M20X1.5,M24X1.5,M27X1.5,M42X2,M60X2
G 3/8'',G 1/2'',G 3/4'',G 1'' ,G1 1/4'' ,G1 1/2''
NPT 3/8‘’, NPT 1/2‘’,NPT 3/4‘’,NPT 1‘’
Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.

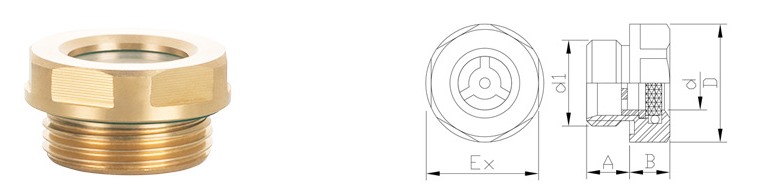

ITEM
d
A
B
D
HEX
WO-OSG-08-M01
10
8
7.5
22
20
WO-OSG-08-M02
13
8.5
8
26
23
WO-OSG-08-M03
18
9
8
32
30
WO-OSG-08-M04
24
11
8.5
40
36
ITEM
d
A
B
D
HEX
WO-OSG-08-G01
10
8
7.5
22
20
WO-OSG-08-G02
13
8.5
8
26
23
WO-OSG-08-G03
18
9
8
32
30
WO-OSG-08-G04
24
11
8.5
40
36
