Description

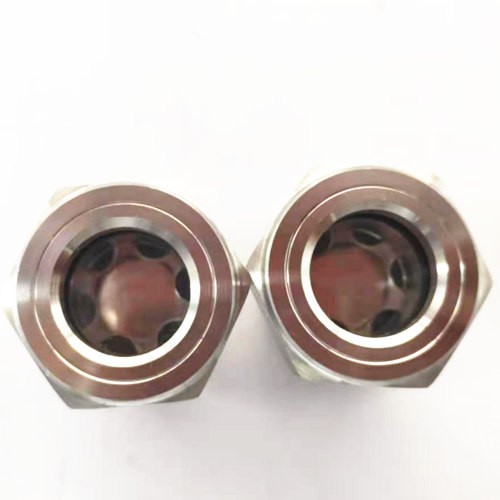

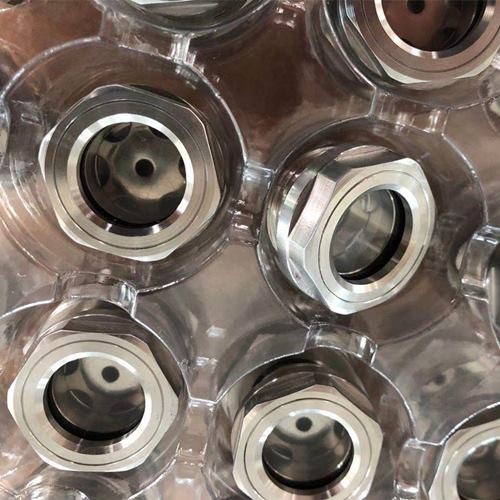

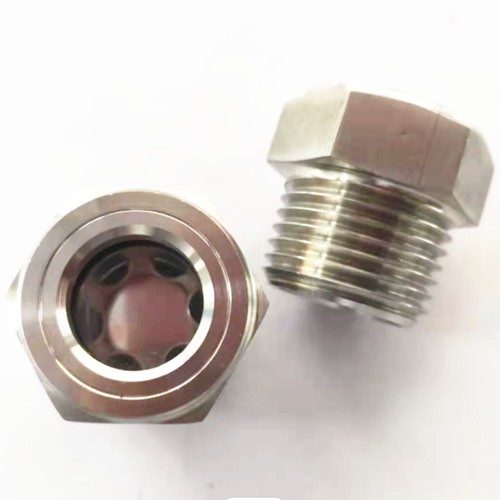

Stainless Steel 304 SS316 Oil Level Sight Glass Window
Sight glass, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Aluminum, Steel and Brass
O-Ring: Viton and NBR
Glass: Tempered Glass
Glass Thickness: 2mm to 5 mm
Size：
M10X1,M12X1.5,M14X1.5,M16X1.5,M20X1.5,M24X1.5,M27X1.5,M42X2,M60X2
G 3/8'',G 1/2'',G 3/4'',G 1'' ,G1 1/4'' ,G1 1/2''
NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.
|

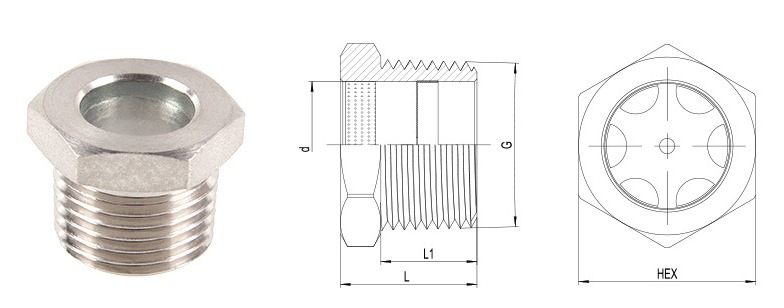

ITEM |
G |
L |
L1 |
d |
HEX |
|
WO-OSG-06-N01 |
NPT1/2’’ |
20 |
14 |
14 |
24 |
|
WO-OSG-06-N02 |
NPT3/4’ |
24 |
17 |
18 |
27 |
|
WO-OSG-06-N03 |
NPT1’’ |
27 |
19 |
25 |
36 |
|
WO-OSG-06-N04 |
NPT1 1/4’’ |
31 |
21 |
30 |
45 |
|
WO-OSG-06-N05 |
NPT1 1/2’’ |
31 |
21 |
36.5 |
50 |
|
WO-OSG-06-N06 |
NPT2’’ |
33 |
23 |
44.5 |
64 |
